RF Admittance Type Level Switches :

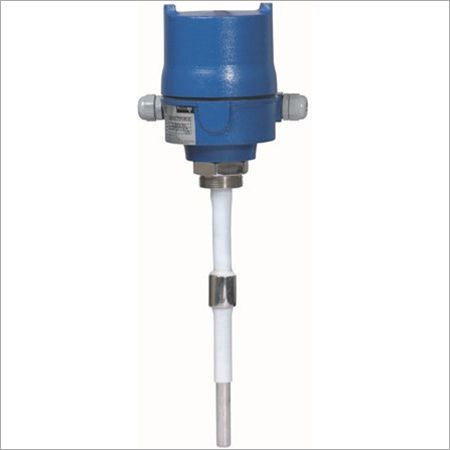

Model (RF-LS1) , RF-Admittance Type Level Switch The system is a DRIVEN SHIELD, COAT GUARD single point level switch. The electronics control unit is integral to the probe. Fail safe logic is field selectable.

Housing Cast Aluminum weather proof
Cable Entry 2x 16mm
Mains 230VAC / 24VDC
Output 2 nos potential free C/O contacts rated at 5 amps, 230 VAC resistive.
Probe IntegralL
Mounting 1.1/2"BSP(m) threaded
Sensing Stainless Steel
Insulations PTFE
Probe Length 250mm

Capacitance Type Level Switches :

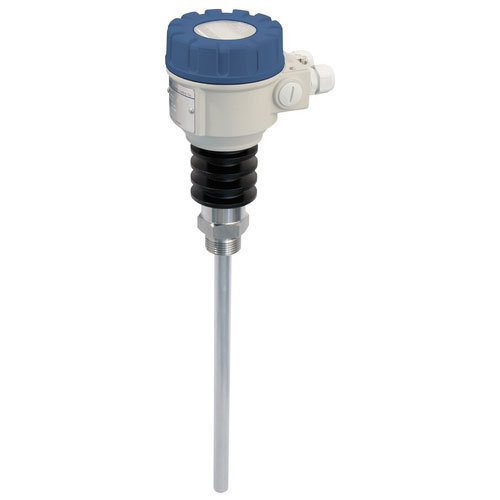

Capacitance Type Level Switch Model (CLS-1)

Housing Cast Aluminum weather proof
Cable Entry 2x PG7
Mains 24VDC
Output 2 nos potential free C/O contacts rated at 5 amps, 230 VAC resistive.
Probe SS304 / SS316 Non insulated or PTFE insulated
Mounting 1/2" or 3/4" BSP(M) or 1 "ASA 150 lbs flanged but thickness 12mm
Probe Length 100mm as Standard.
Max. Working Pressure 4 kg/sq.cm
Max. Working Temp. 150 deg C
