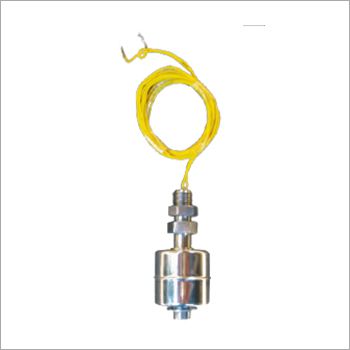

| Model | VMT-16m |
| Process Connection | 1/8"BSP(M) |
| Mounting Hole | 10 mm |
| Gasket | PTFE Teflon Flat Ring |
| Material of Construction | SS 316 |
| Type of Switch | SPST |
| Switch Rating | 60VA / 100VA |
| Total Stem Length | 40mm below hex |
| Float | 28mm dia X 28mm long |
| Maximum Switching Voltage | 300 VAC / DC |
| Maximum Working Temperature | 125o C |
| Maximum Working Pressure | 4 kg/cm2 |
| Wire length | 1 metre long 19/36 SWG PTFE insulated |
| Model | VMT-16m-L |
| Process Connection | 1/4"BSP(M) |
| Mounting Hole | 13 mm |
| Gasket | PTFE Teflon Flat Ring |
| Material of Construction | SS 316 |
| Type of Switch | SPST |
| Switch Rating | 60VA / 100VA |
| Total Stem Length | 32mm H & 75mm V |
| Float | 28mm dia X 28mm long |
| Maximum Switching Voltage | 300 VAC / DC |
| Maximum Working Temperature | 125o C |
| Maximum Working Pressure | 4 kg/cm2 |
| Wire length | 1 metre long 19/36 SWG PTFE insulated |
| Model | VMT-16m |
| Process Connection | 1/4"BSP(M) |
| Mounting Hole | 13 mm |
| Gasket | PTFE Teflon Flat Ring |
| Material of Construction | SS 316 |
| Type of Switch | SPST |
| Switch Rating | 60VA |
| Total Stem Length | 32mm H & 75mm V |
| Float | 41 mm dia X 54 mm long |
| Maximum Switching Voltage | 300 VAC / DC |
| Maximum Working Temperature | 125o C |
| Maximum Working Pressure | 4 kg/cm2 |
| Wire length | 1 metre long 19/36 SWG PTFE insulated |
| Model | VMT-04-F40-GN-PG7 |
|---|---|
| Process Connection | 50mm round flange with 4 nos. bolt holes of 5mm dia on 4omm PCD. |
| Mounting Construction | Flange in Glass filled nylon,Float in PU |
| Type of Switch | SPST-Single Level Only |
| Switch Rating | 60VA |
| Total Stem Length | As per your requirement |
| Float | 25mm dia x 25mm long |
| Maximum Switching Voltage | 230 VAC |
| Maximum Working Temperature | 70o C |
| Maximum Working Pressure | 2 kg/cm2 |
| Wire length | 1 metre standard (3 Core PVC Insulated) |

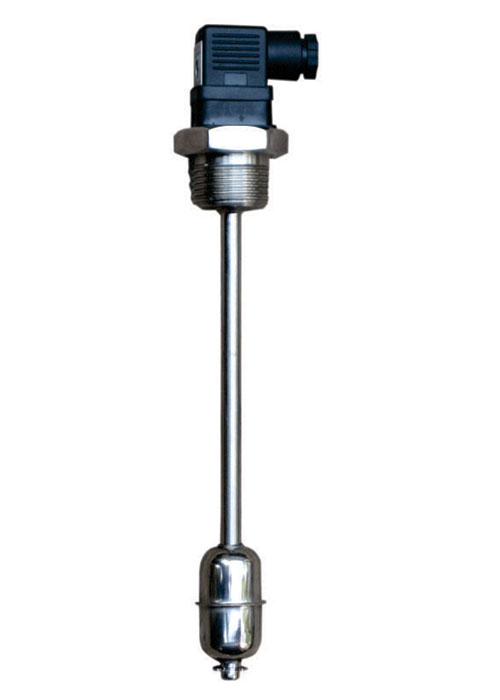

| Model | Model VMT-16-1" BSP(M) - PG9 |
| Process Connection | Threaded to 1" BSP(M). Can be given in 1.1/2" & 2" BSP Threading |
| Mounting Construction | Hex, Pipe & Stopper in SS 316 & Float in SS 316L |
| Type of Switch | SPST |
| No. of Switches | Maximum 2 Nos. (2 Levels Only) |
| Switch Rating | 100 VA |
| Total Stem Length | As per your requirement (Max. upto 1 meter) |
| Float | 28mm dia x 28mm or 28mm dia x 47mm 41mm dia x 54mm |
| Maximum Switching Voltage | 300 VAC / DC |
| Maximum Working Temperature | 125o C |
| Maximum Working Pressure | 4 kg/cm2 |
| Enclosure | DIN 43650 Plug & Socket type Connector |
| Model | VMT- 16 - SSCG |
| Process Connection | 1/4"BSP(M) |
| Mounting Construction | SS 316 |
| Type of Switch | SPST / SPDT |
| Switch Rating | SPST / SPDT |
| Total Stem Length | 150mm & 250mm |
| Float | 53mm dia (at collar) Spherical Float SS316 |
| Maximum Switching Voltage | 300 VAC / DC |
| Maximum Working Temperature | 125o C (Higher Temprature of 175o C optional ) |
| Maximum Working Pressure | 10 kg/cm2 |
| Cable Entry | 3 Core PTFE with overall silicon insulation |
| Cable Gland | SS 316 |
| Model | VMT-16-3"TC - AH : |
| Process Connection | 3"TC (Any Other TC size can be given) |
| Mounting Construction | SS 316 |
| Type of Switch | 2 Nos. SPST Reed-Switches. (Max.4 Levels) |
| Contact Configuration | Low Level - makes / breaks on fall of level. high Level - makes / breaks on rise of level. |
| Switch Rating | 100 VA |
| Total Stem Length | As per your requirement |
| Float | 50mm dia x 85mm long SS316L or As per TC size |
| Maximum Switching Voltage | 300 VAC / DC |
| Maximum Working Temperature | 125o C (Higher Temprature of 175o C optional ) |
| Maximum Working Pressure | 10 kg/cm2 |
| Enclosure | Cast Aluminium Weather proof - IP66 |
| Model | VMT- 04 - F82 |
|---|---|
| Process Connection | 82mm Square flange with 4 nos bolt holes of 10mm dia on 82mm PCD |
| Mounting Construction | Float in SS316 L , Flange & Pipe in SS304. |
| Type of Switch | SPST |
| Switch Rating | 100 VA |
| Total Stem Length | 200mm (Max upto 3mtrs.) |
| No. Of Levels | 1, 2, 3, 4 Upto maximum of 5. |
| Contact Configuration | Low Level - makes / breaks on fall of level. high Level - makes / breaks on rise of level. |
| Float | 50mm dia x 85mm Long SS316L |
| Maximum Switching Voltage | 230 VAC |
| Maximum Working Temperature | 125o C (Higher Temprature of 175o C optional ) |
| Maximum Working Pressure | 10 kg/cm2 |
| Enclosure | SS304 |
| Cable Entry | Neoprene Gromet |
